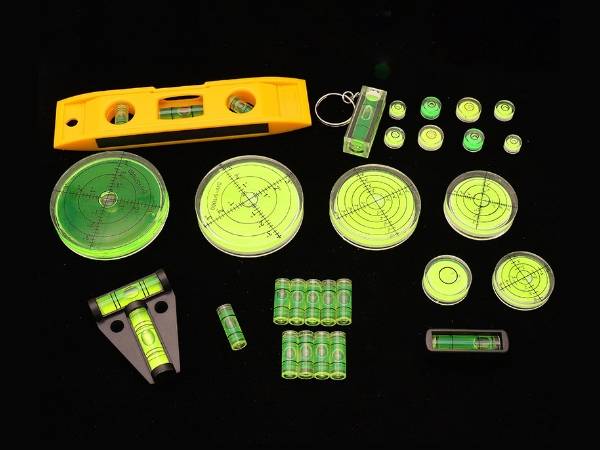

Bubble Level Vial– Various Materials, High Sensitivity, Easy to Operate
Bubble level vial, also known as spirit level, or bubble level indicator, is used for object leveling. There are mainly glass bubble levels and plastic bubble levels. It is widely used in theodolite, level, compass, electronic scale, total station and other photoelectric instruments.
The tube is filled with liquid with good fluidity and a certain amount of air, forming a bubble, usually called as level bubble. When the measured object is tilted horizontally, the level bubble moves toward the elevated part of the level meter, so that the position of the plane can be determined.
Plastic Cylindrical Bubble Level Vial
Material: ABS, PMMA
Medium: Eco-friendly solvent oil
Sensitivity: 30′
Glass Cylindrical Bubble Level Vial
Sensitivity: 5′–60′
Specification
| 4.5 × 12 | 5 × 12 | 6 × 7 |
| 6 × 15 | 6 × 20 | 6 × 24 |
| 6.3 × 29 | 6.5 × 18 | 6.5 × 25.5 |
| 7 × 16 | 7 × 26 | 7 × 26.5 |
| 8 × 20 | 8 × 22 | 8 × 22.5 |
| 8 × 23 | 8 × 35 | 9 × 25 |
| 9.5 × 25.5 | 9.5 × 30 | 9.5 × 31 |
| 9.5 × 34 | 9.5 × 40 | 10 × 30 |
Cylindrical bubble level vial with mounting hole
Sensitivity: 30′
Dimensions: 59 × 25 × 13 mm
Cylindrical bubble level vial with magnet back type 1
Sensitivity: 30′
Dimensions: 40 × 17 × 9 mm
Cylindrical bubble level vial with magnet back type 2
Sensitivity: 30′
Dimensions: 47.5 × 19 × 13.5 mm
Cylindrical bubble level vial with bottom hole
Sensitivity: 30′
Dimensions: 50.3 × 13.7 × 11.8 mm
Cylindrical bubble level vial with large rack
Sensitivity: 30′
Dimensions: 40.5 × 13.6 × 6.3 mm
Cylindrical bubble level vial with small rack
Sensitivity: 30′
Dimensions: 34.8 × 9 × 8 mm
Gunsight cylindrical bubble level vial
Sensitivity: 30′
Screw on cylindrical bubble level vial
Sensitivity: 30′
Cylindrical bubble level vial with lines
T-shaped cylindrical bubble level vial
Dimensions: 55 × 48 × 13 mm
Shoe-shaped cylindrical bubble level vial
Cylindrical bubble level vial with alloy frame
Fully transparent T-shaped cylindrical bubble level vial
Mini cylindrical bubble level vial
Adjustable cylindrical bubble level vial
Box type cylindrical bubble level vial
Pipe angle cylindrical bubble level vial
Aluminum alloy cylindrical bubble level vial
Square bubble level vial with magnifying glass function
Sensitivity: 30′±5′
Material: PMMA (acrylic, Plexiglass)
Dimensions: 10 × 10 × 29 mm, 15 × 15 × 40 mm
Screw on square bubble level vial
Sensitivity: 30′±5′
Dimensions: 10 × 10 × 39 mm
Keychain square bubble level vial
Sensitivity: 30′±5′
Dimensions: 15 × 15 × 40 mm
Mini T-shaped square bubble level vial
Universal circular bubble level vial
Material: PMMA + ABS
Medium: Mobil solvent oil
Sensitivity: 20′–30′
Universal bubble level vial with base
Sensitivity: 30′
Specification
| 8 × 5.5 | 10 × 6 | 12 × 6 |
| 12 × 7 | 12 × 7.5 | 13 × 7 |
| 14.8 × 8 | 15 × 6 | 15 × 8 |
| 18 × 9 | 19 × 10 | 20 × 10 |
| 20 × 14 | 25 × 9 | 30 × 10 |
| 32 × 7 | 32 × 8 | 43 × 12 |
| 48 × 13 | 50 × 17 | 60 × 10 |
| 66 × 10 | 80 × 12 | – |
One-dimensional camera bubble level vial
Dimensions: 18.5 × 18.5 × 18.5 mm
Two-dimensional camera bubble level vial
Dimensions: 19 × 19 × 33 mm
Three-dimensional camera bubble level vial
Dimensions: 25 × 25 × 29 mm
Hot shoe cover camera bubble level vial
Hot shoe white cat camera bubble level vial
Console camera bubble level vial
Torpedo bubble level vial type 1
Torpedo bubble level vial type 2
Torpedo bubble level vial type 3
Torpedo bubble level vial type 4
Torpedo bubble level vial type 5
Torpedo bubble level vial type 9
Torpedo bubble level vial type 10
Portable torpedo bubble level vial type
Pointer angle bubble level vial
Dimensions: 85 × 85 × 14 mm
Multifunctional angle bubble level vial
Material: ABS + PMMA
Dimensions: 95 × 95 × 30 mm
